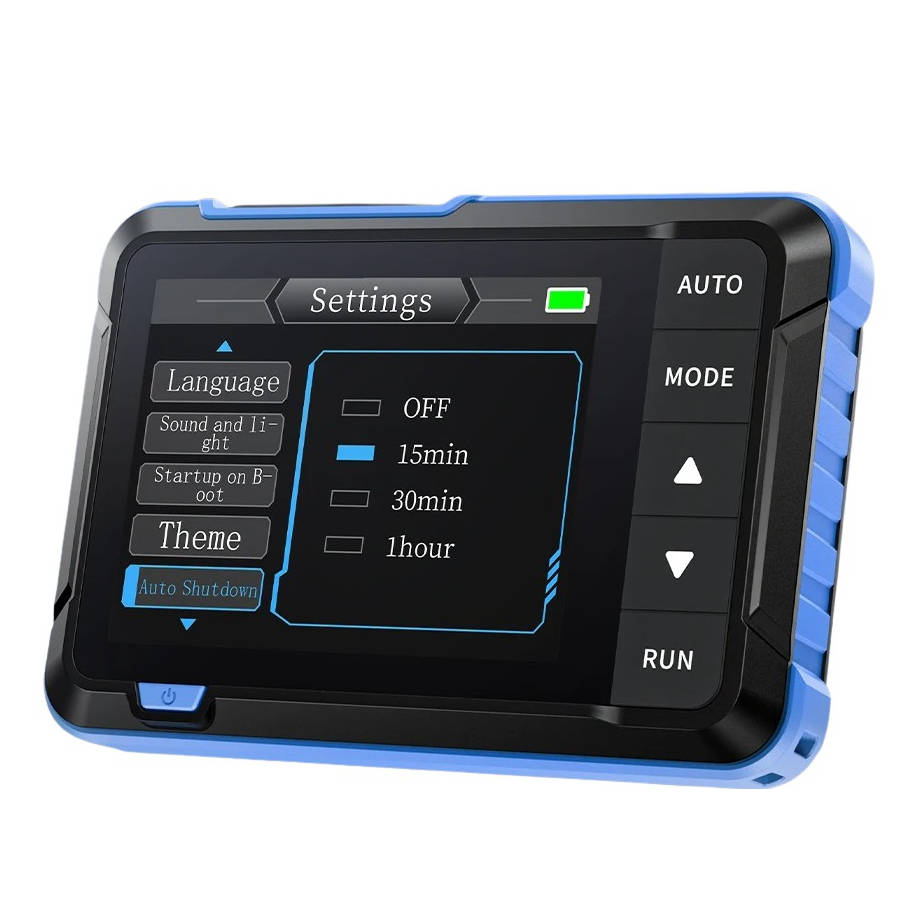

Compact Signal Analyzer for Everyday Use

Compact Signal Analyzer for Everyday Use

When troubleshooting a circuit feels like searching for a needle in a haystack, you need a reliable tool at your fingertips. This portable analyzer empowers you to quickly diagnose issues and keep your projects on track, available in two tailored models to suit your specific requirements.

With a simple press of the AUTO button, your signal appears instantly on the large, vibrant display. Choose from three methods to capture signals, whether they are stable waveforms or sporadic signals. The Standard model provides 10,000 testing cycles, while the Pro model enhances that to an impressive 50,000 cycles.

Select the version that meets your demands; the Standard captures 5 million snapshots per second, while the Pro model boasts an astounding 48 million snapshots. The Pro is capable of managing signals up to 10 million cycles per second, ideal for laboratory environments, while the Standard handles 1 million cycles for day-to-day testing needs. Both models feature a 2.8-inch display that clearly visualizes waveforms and can safely measure voltages up to 400 volts.

And that's not all! Each model excels with both analog and digital signals, ensuring versatility for any application. Whether you're conducting lessons or repairing devices on-site, these analyzers are designed for portability. Plus, both versions provide up to four hours of continuous operation on a single charge, perfect for extended work sessions.

• ACCURATE VOLTAGE MEASUREMENT: Enhanced ±400V measurement range with built-in safety circuits guarantees reliable diagnostics.

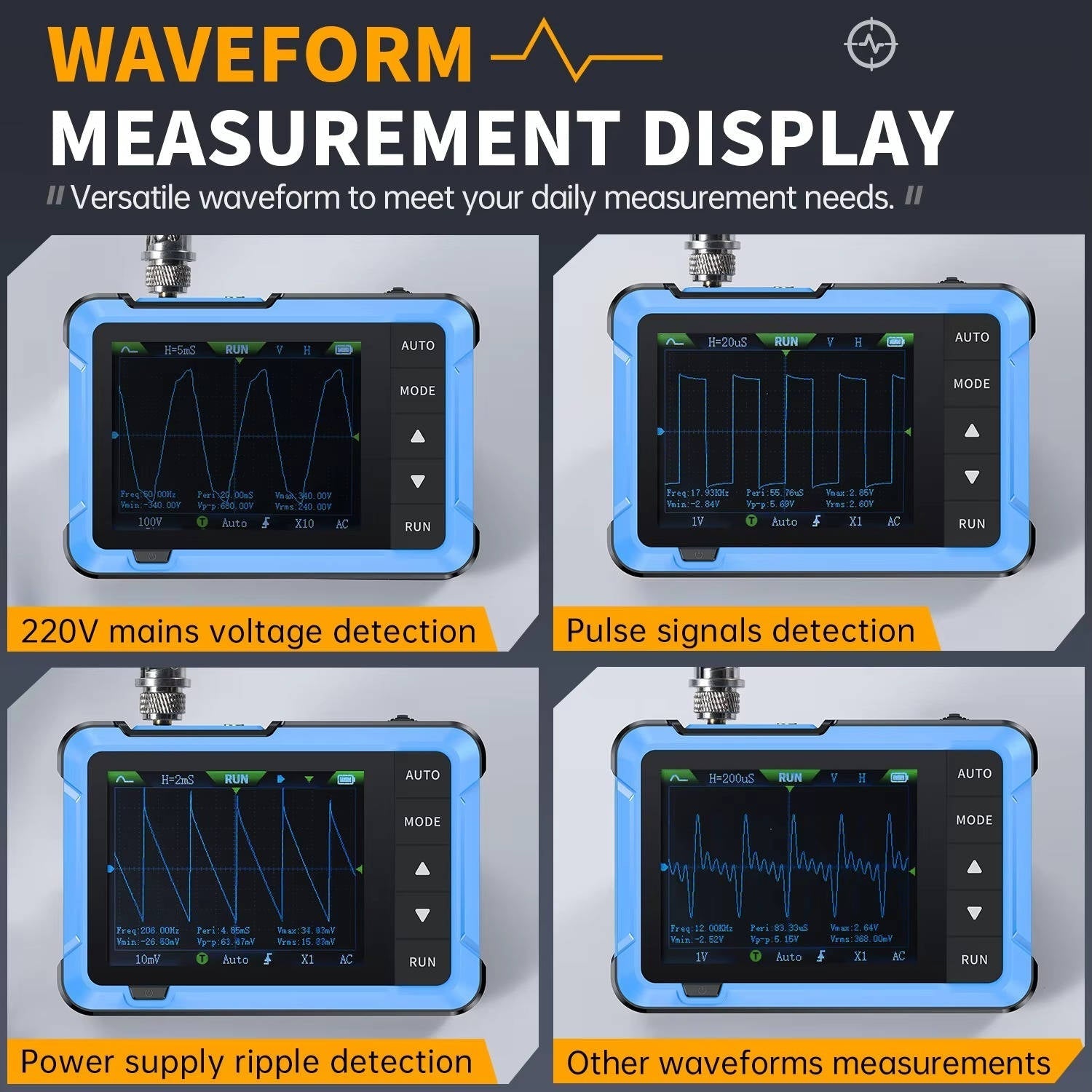

• ADAPTABLE SIGNAL MONITORING: Effectively analyzes both analog and digital signals with expert precision.

• REAL-TIME DATA CAPTURE: Standard version offers 5MS/s sampling for everyday diagnostics, while the pro version accelerates to 48MS/s for high-speed evaluations.

• BANDWIDTH OPTIONS: The Standard model delivers 1MHz bandwidth for routine testing, while the Pro version extends to 10MHz for high-frequency tasks.

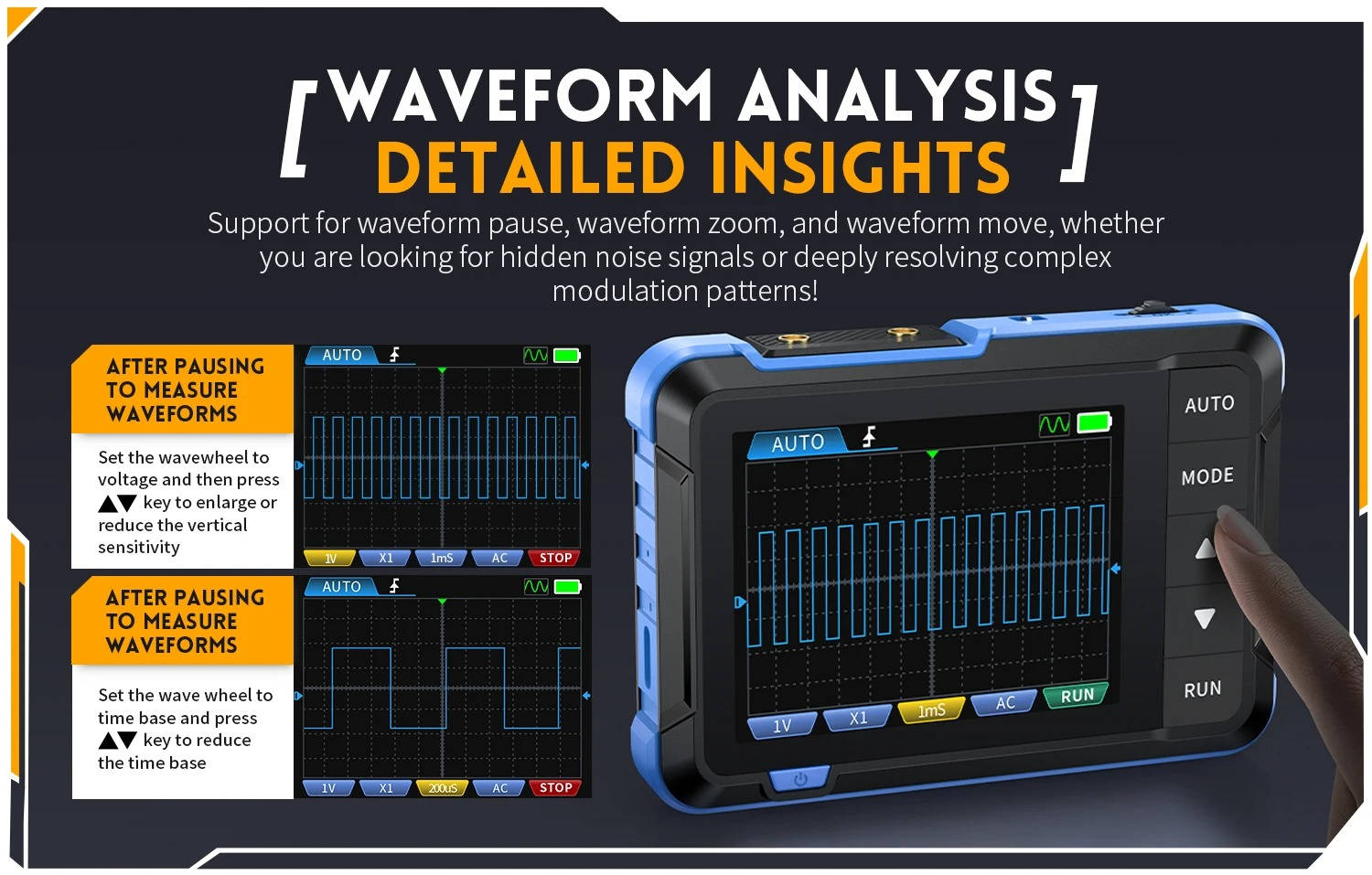

• INSTANT SIGNAL CAPTURE: The AUTO mode feature allows for immediate display and adjustments of waveforms, streamlining troubleshooting.

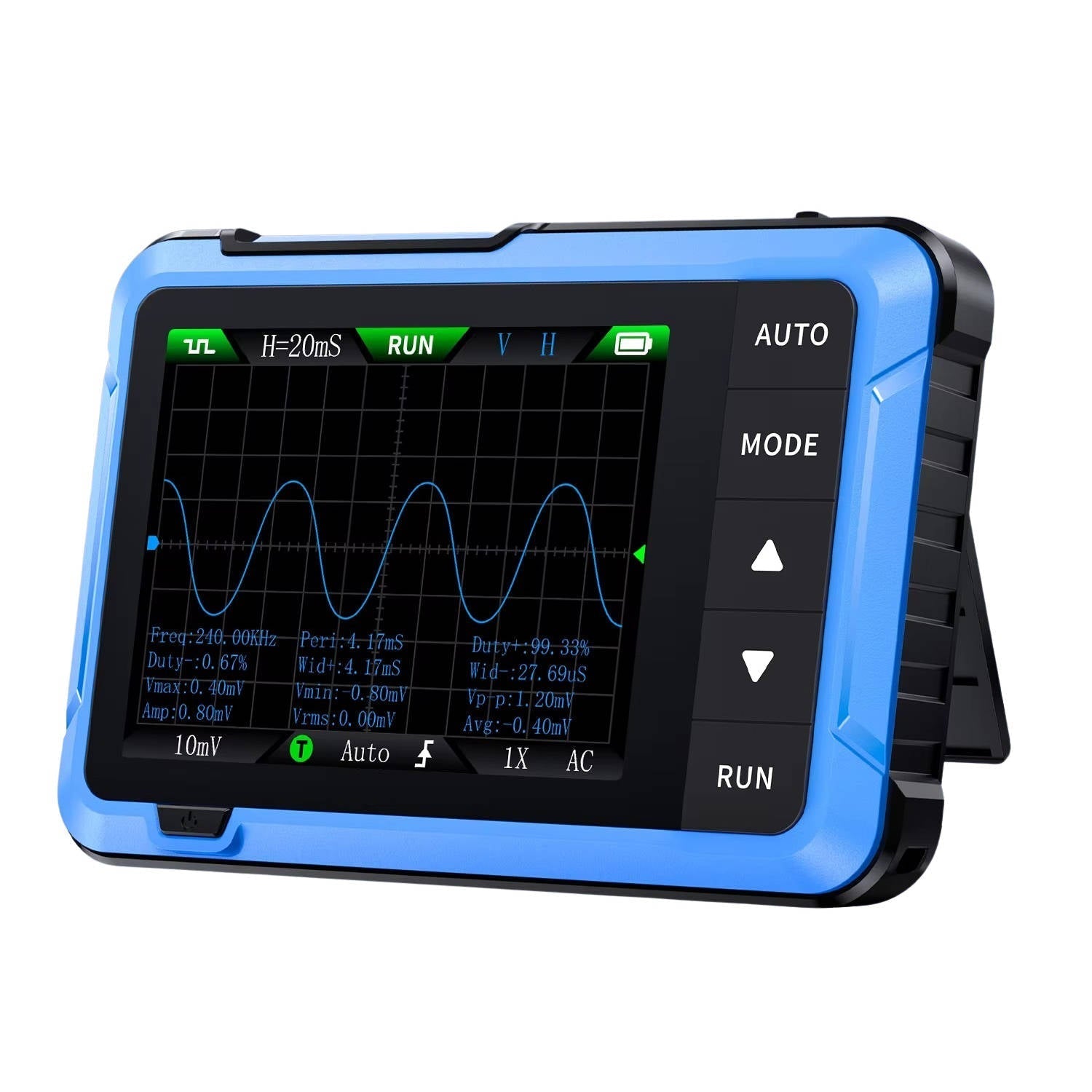

• HIGH-QUALITY DISPLAY: Featuring a 2.8-inch LCD screen that produces sharp, clear visuals with 320×240 resolution.

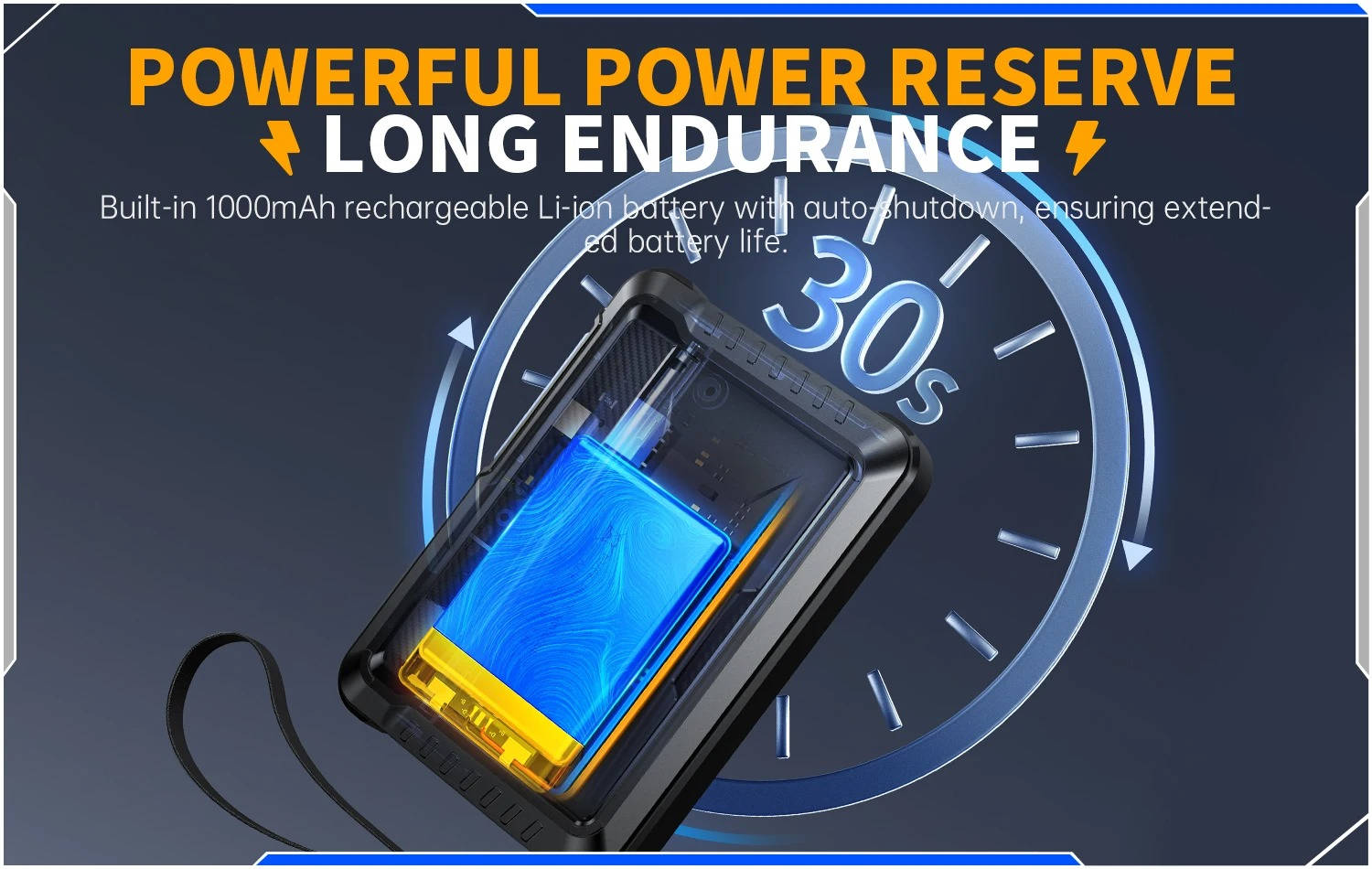

• LONG-LASTING BATTERY LIFE: The 1000mAh lithium battery provides four hours of uninterrupted testing and analysis.

• PRECISION TRIGGERING: Three distinct trigger modes enhance signal capture for both maintenance and development tasks.

• BUILT-IN SIGNAL GENERATOR: The Standard version is equipped with a 10KHz generator for basic testing, while the Pro version includes a 50KHz generator for detailed analysis.

COMPACT SIGNAL ANALYZER SPECIFICATIONS

Core Specifications:

• Display: 2.8 inch LCD

• Screen Resolution: 320×240

• Battery: 1000mAh Lithium

• Operational Time: 4 hours

• Voltage Range: ±400V

• Trigger Modes: Single/Normal/Auto

• Signal Compatibility: Analog/Digital

• Uses: Maintenance/Education/Development

Standard Model Features:

• Sampling Rate: 5MS/s

• Bandwidth: 1MHz

• Signal Generator: 10KHz

Pro Model Features:

• Sampling Rate: 48MS/s

• Bandwidth: 10MHz

• Signal Generator: 50KHz

PACKAGE CONTENTS:

• 1 x Compact Signal Analyzer

• 1 x Alligator clip probe

• 1 x Charging cable

• 1 x Lanyard

• 1 x User Manual

• 1 x Packaging box

• 1 x 100MHz Passive Probe (Pro Model)

• 1 x Adapter (Pro Model)
